Discover the peculiarities of roller shutter fences and how they can be assembled
Atlas type fence
Atlas fence panels consist of horizontal metal slats placed one above the other. They provide complete privacy due to their opacity, while ensuring excellent ventilation of the fenced area due to the distances between the slats. This feature is important for maintaining a favorable microclimate, including for the plants in your yard.
Panel height

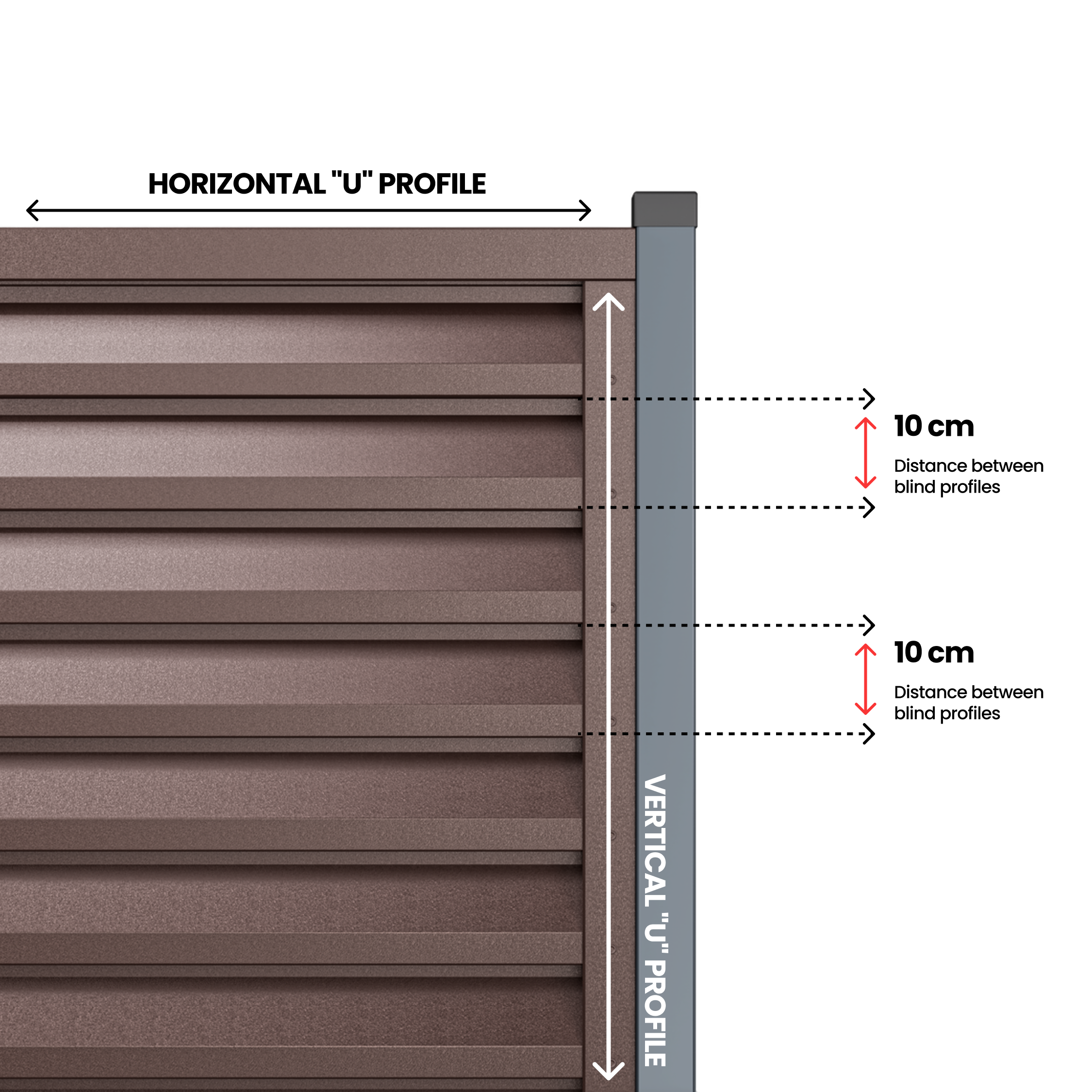

The minimum recommended height for ATLAS is 0.745 m, corresponding to 7 slat profiles. In addition, the height can be increased by 10 cm: 0.845 m; 0.945 m and so on, up to 3.145 m. The height of the slat profile before installation is 11.2 cm.
Panel width
The choice is from a minimum of 0.4 m to a maximum of 2.5 m with the possibility of correction every 1 cm. The depth of the panel is 35 mm.
Sigma type fence
Sigma fence panels consist of horizontal metal slats placed one above the other. They provide complete privacy thanks to their opacity, while guaranteeing excellent ventilation of the fenced area, thanks to the distances between the slats. This feature is important for maintaining a favorable microclimate, including for the plants in your yard
Panel height

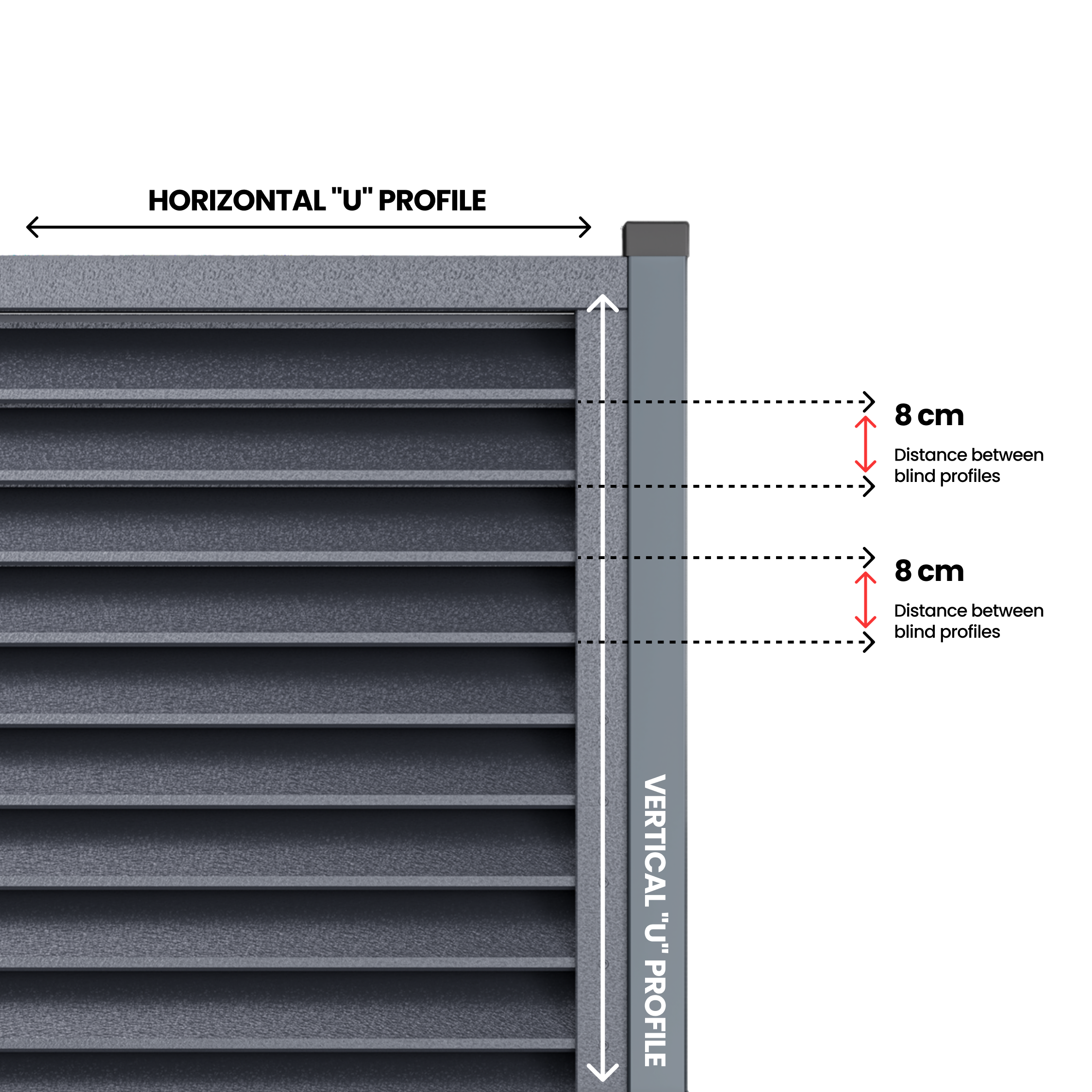

The minimum recommended height of SIGMA is 0.78 m (9 slats). Then it increases by 8 cm – 0.86 m, 0.94 m and so on up to 3.1 m.
Panel width
You can choose a width from 0.4 m to 2.5 m, with the possibility of adjustment every 1 cm. The depth of this fence model is 56 mm
Pyramid type fence
Piramida fence panels consist of horizontal metal slats placed one above the other. They provide complete privacy due to their opacity, while guaranteeing excellent ventilation of the fenced area, due to the distances between the slats. This feature is important for maintaining a favorable microclimate, including for the plants in your yard.
Panel height
The minimum recommended height for the PYRAMID is 0.775 m (11 slats). The height changes in 6.5 cm increments – 0.840 m, 0.905 m, etc. up to 3,050 m.
Panel width
The width can be selected between 0.4 m and 2.5 m, with the possibility of adjustment every 1 cm. The depth of the model is 93 mm.
Gamma type fence
GAMMA fence panels provide excellent ventilation, while maintaining privacy and blocking direct views. They are designed to allow air to move freely, preventing the accumulation of heat associated with the greenhouse effect. Thanks to the use of wide profiles with a pronounced curvature at the ends, GAMMA blinds achieve a higher level of strength and durability, providing high resistance to wind loads.
Panel height

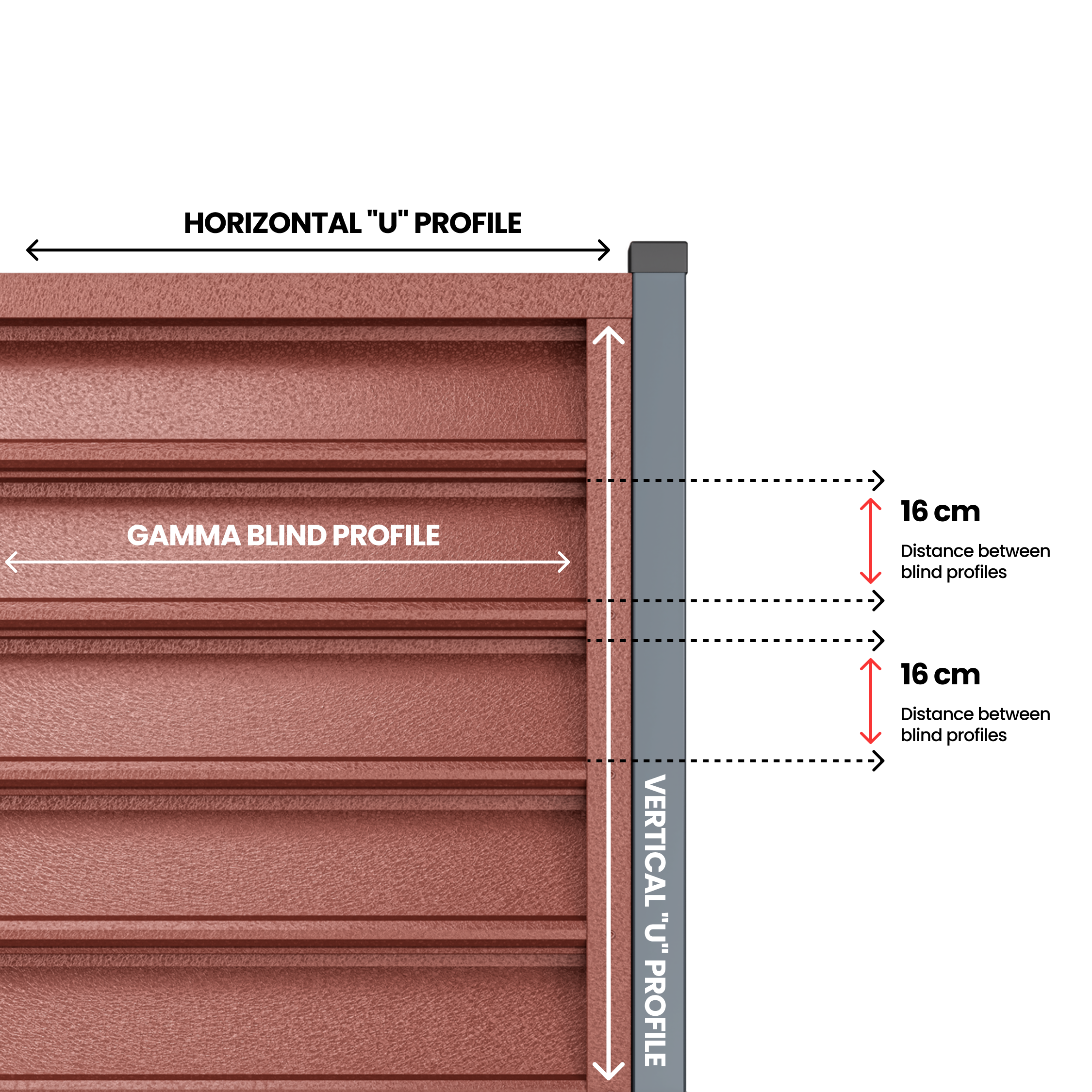

The recommended initial height of GAMMA is 0.69 m, 4 blinds. Then it increases by 16 cm - 0.69 m, 0.85 m and so on up to 3.09 m. The height of the lamellar profile before installation is 16.7 cm.
Panel width
You can choose a width from 0.4 m to 2.5 m, adjustable in 1 cm increments. The depth of this fence model is 56 mm.
Terra type fence
The TERRA horizontal fence combines durability and aesthetics, similar to a WPC patio fence, but made of metal for greater durability. It is ideal for dividing spaces and creating decorative ceiling pergolas in offices and attics, as well as for outdoor structures such as pergolas and terraces. TERRA's robust cassette profiles allow the creation of large panels, eliminating the need for a support strip and facilitating installation.
Panel height
This fence model offers the possibility of adjusting the distance between the profiles. You can also define the distance between the base and the first profile. The site calculator will help you determine the recommended height of up to 3 meters based on your parameters.
Panel width
A range of widths is available from 0.40 m to 3.00 m, which can be adjusted in 1 cm increments. The depth of this panel model is 37 mm.
